XETA - LED Status Codes

XETA - LED Status Codes

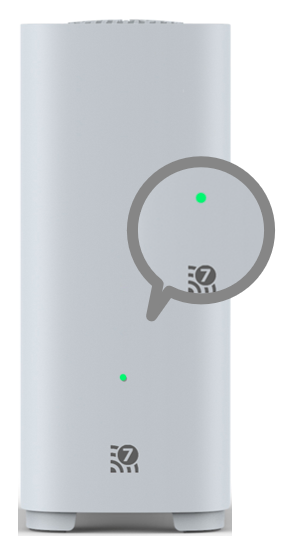

General Operation

  1. GREEN - Slowly Blinking - Starting Up / Booting
  2. GREEN - Solid / Steady - Device has booted and is operating as expected
  3. GREEN - Rapidly Blinking - Connected, but waiting for internet access
  4. RED - Solid - No Internet Access / Wi-Fi disabled
    1. Obtained an IP address, but no internet access
    2. WAN port link is down or Extender wireless link is down
  5. RED - 5 seconds solid- Hardware failure, device will automatically reboot
  6. White - Solid - Booting complete, device ready for setup.

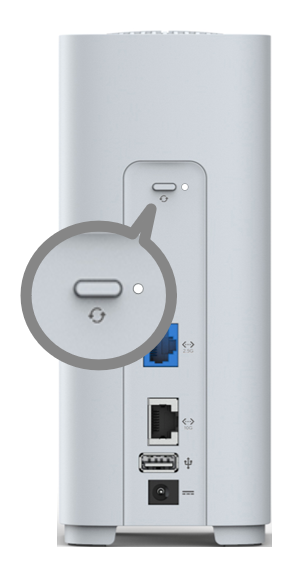

Extender / WPS Status LED

  1. Off - Normal Operation
  2. White - Blinking - Extender is Pairing to Gateway
  3. RED - Solid - Pairing failed. Consider moving devices closer together, and pressing buttons within 15 seconds of each other.
